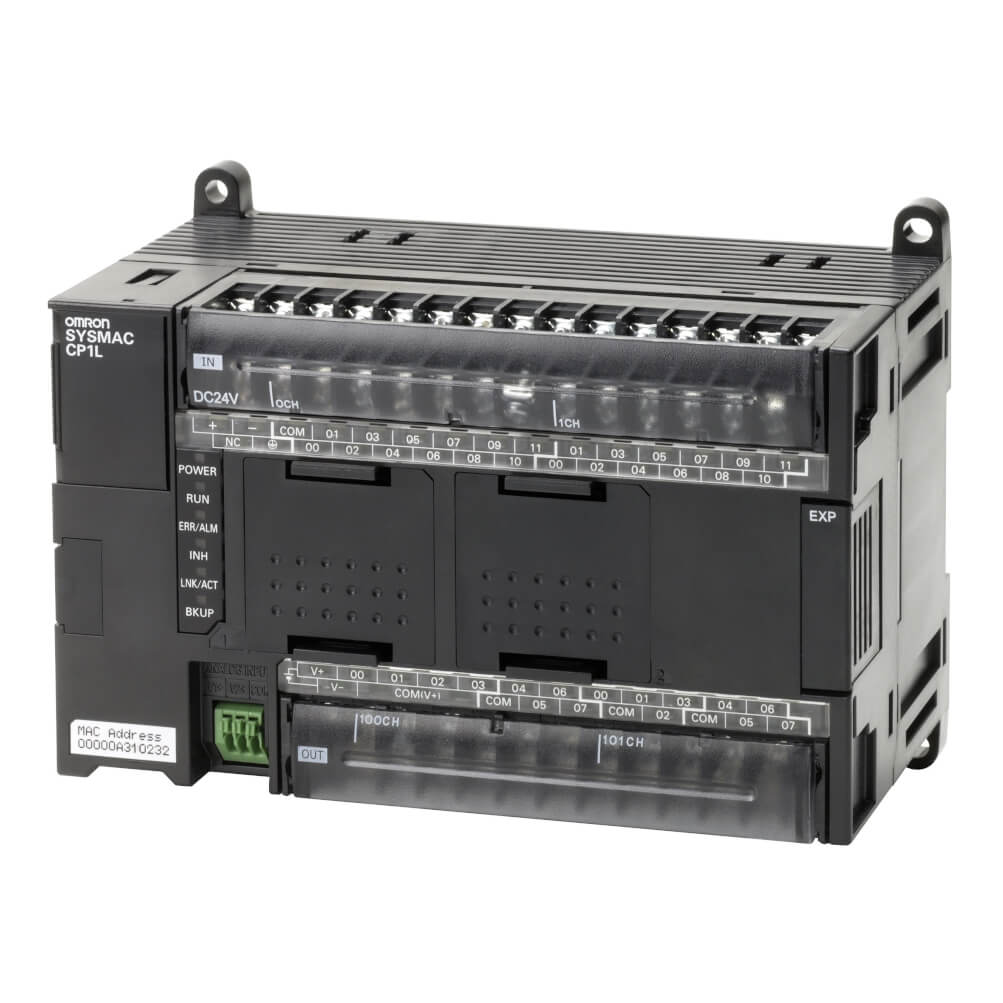

OMRON CP1L-EM40DT-D PLC

OMRON CP1L-EM40DT-D is a compact Programmable Logic Controller (PLC) from OMRON's CP1L series. This PLC is designed for smaller-scale automation projects where both space and cost are important factors. Here are some key features and specifications:

Main Features:

Built-in Ethernet Port: The CP1L-EM40DT-D has a built-in Ethernet port that allows for easy integration into a network for remote monitoring, programming, and control.

I/O Configuration: 40 I/O Points: The model includes a total of 40 I/O points, consisting of 24 digital inputs and 16 digital outputs.

Output Type: Outputs are of the transistor type, typically used for high-speed operation and connecting to devices such as relays, solenoids, or other PLCs.
Compact Size: This PLC is designed to be compact, making it suitable for applications where space is limited.

Memory and Program Capacity: Program Capacity: Up to 10,000 steps program capacity.

Data Memory: Provides a data memory area to store variables, settings and other data used during operation.
Communication Capabilities:

Serial Communication: In addition to Ethernet, it supports serial communication via RS-232C and RS-485, which can be used to connect to other devices and HMIs.
Expansion Modules: The CP1L series supports expansion modules for additional I/O, analog inputs/outputs and special communication functions.
Programming: The PLC is programmed using OMRON's CX-Programmer software, which is part of the CX-One software suite. This software provides a user-friendly interface for creating and managing PLC programs.

High-Speed Counters and Pulse Outputs: This model supports high-speed counters and pulse outputs, making it suitable for controlling stepper motors, servos, and other high-speed applications.

Typical applications:
Small and medium-sized machine automation
Packaging machines
Conveyor systems
Building automation
Simple control systems where a full-featured PLC would be overkill
This PLC offers a balance between functionality, size, and cost, making it a versatile choice for a variety of automation projects.
